Step 10: Engine Accessories

Post by Stalker Guru on Sun May 03, 2015 12:54 pm

Engine accessories, alternator, belts, intake, throttle pedal, coil packs.

LS V8
The alternator mounts flipped around facing the engine.  There is a long 10mm bolt, that goes through a 3/4" tube and into the block.  There are several washers included to the get the alternator postioned just right due to the many crank lengths and variations in the alternators.  The other side of the alternator is connected to LH,RH thread tube with heims on it.  It connects over the side passenger side of the water pump with a 8mm bolt and spacer.

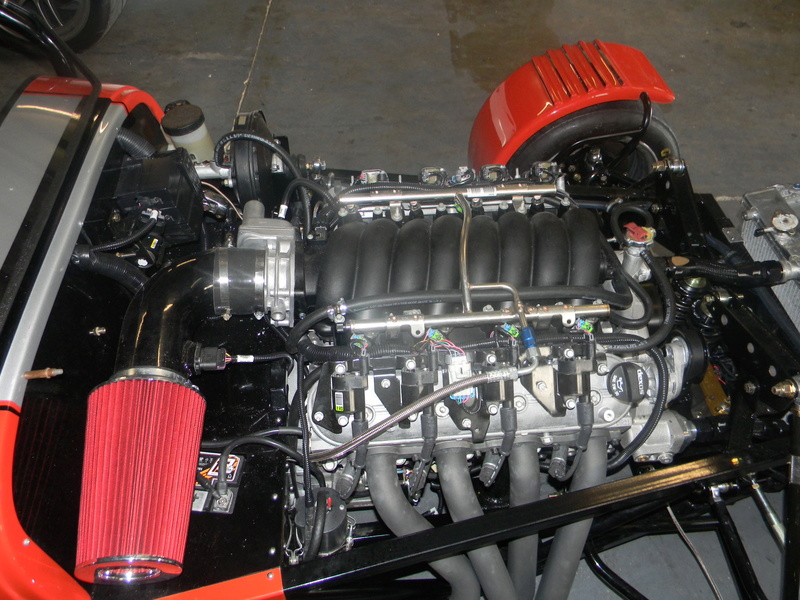

Intake plenum is a 4" 90 dregree sweep that needs the GM MAF bung welded in place.  The 90 degree tube can keep the intake inside the engine compartment or run it inside the car depending on the orientation.
avatar
Stalker Guru
Admin

Posts : 139
Join date : 2015-05-02
Location : Saint Petersburg

View user profile http://stalkercars.com

Back to top Go down

Re: Step 10: Engine Accessories

Post by Stalker Guru on Sun Nov 27, 2016 5:03 pm

3.8 V6
Alternator mounts using the 2 laser cut plates, 2 3/4" tube, and short length of metal bar. 2 10mm bolts go through the 2 brackets and tubes, the other will mount through the alternator. The metal bar will attach with 2 8mm bolts from alternator to block.



avatar
Stalker Guru
Admin

Posts : 139
Join date : 2015-05-02
Location : Saint Petersburg

View user profile http://stalkercars.com

Back to top Go down

Re: Step 10: Engine Accessories

Post by Stalker Guru on Sun Nov 27, 2016 5:05 pm

V6 vacuum routing on L32.


avatar
Stalker Guru
Admin

Posts : 139
Join date : 2015-05-02
Location : Saint Petersburg

View user profile http://stalkercars.com

Back to top Go down

Re: Step 10: Engine Accessories

Post by Stalker Guru on Sun Nov 27, 2016 6:28 pm

#
