Classic R #27 Build - Parking Brake

Post by comled on Sat Apr 23, 2016 9:57 am

Haven't had a lot of time this past couple of weeks to work on the car as spring is here in Pa and I have a lot of outdoor jobs to do, but I have tinkered at getting the parking brake put together. This is a familiar path and other builders, notably XL's #22 and #23 have implemented great solutions to the problem. I'm drawing on their experiences as I put my own parking brake implementation together.


These calipers from IPS are definitely the way to go. I emailed and subsequently talked with Mark at IPS and he confirmed my configuration. My rotors are EBS RK7171's which have a thickness of 0.945" and a diameter of 12.717" if I remember correctly. I added the optional mounting bracket and the undrilled cable mount brackets: these I will drill and tap to suit the Lokar handbrake cable that I plan to use. These calipers are absolutely top-notch, beautifully made and very high quality, inspiring confidence in their ability to do the job. Mark told me that they are 'wearless' pads: the pads retract completely from the rotor when the parking brake is disengaged. They are not cheap but they are worth the expense - plus for these thicker rotors there really are very few options out there. I got an order off to IPS with an estimated shipment 5 days after I ordered (shipment was right on schedule) and at the same time ordered the Lokar cable set and parking brake lever.


Like XL's #22 and #23 I had to come up with a bracket to mount the caliper to the spindle. XL#23's bracket mounts directly to the spindle using the same bolts that hold the hub on and I opted for that approach. I spent Sunday afternoon taking measurements off the disassembled spindle (which I learned from Mark is also called an "upright") and modeling it in Solidworks. I modeled just enough to get the basic geometry relating the hub, rotor and caliper mounting brackets. The calipers come with a dimensioned drawing/instructions for determining where the caliper should be positioned relative to the rotor and hub: essentially the mounting centers are 4.31" from the center of the rotor, and are 3.5" apart from one another. There should be a minimum of .050" clearance from the caliper bridge to the edge of the rotor - that seems tight but doable with some care.


A few years ago I built a 3D printer. By today's standards it's a bit clunky and limited but I couldn't pass up the opportunity to prototype my parking brake bracket. I'm not expecting it to be a super accurate fit but for proof of concept this will do fine.


I printed the model in 3 pieces because my printer only has a relatively small print area. After some minor cleanup I glued the 3 pieces together with superglue.


I had to clean up the mounting holes a bit but everything aligned just fine on the spindle end.


I definitely have to open up the holes on the caliper end: the holes are 7/16x14 threaded on the IPS bracket. At the same time I need to address the caliper bridge to rotor clearance of .050" - just a fraction too tight on this 3D printed version but then the tolerances on the printed part are pretty rough. I'll add a little extra space on the bracket as a contingency.


Viewed from the rear where it attaches to the hub bolts. It's a nice clean fit around the back of the hub bore but I will test fit one of the driveshafts this weekend to make sure there is no interference.



-Dave

_________________
2015 Stalker Classic R/L26 in progress
2015 Nissan 370Z
2010 Triumph Bonneville T100
1977 MGB
1973 Norton Commando MkII Interstate
1960 Hammond A100
1949 Ford 8N
avatar
comled

Posts : 124
Join date : 2015-10-07
Location : New Hope, PA

View user profile http://comley.us

Back to top Go down

Re: Classic R #27 Build - Parking Brake

Post by dbeng on Sat Apr 23, 2016 10:26 pm

Looking great Dave. I'm enjoying your build thread, I admire people like you who take the time to document and post such thorough detail on the builds. I'm slowly working on mine but (real) work is always crazy and doesn't leave much time for working on the Stalker, let alone writing it up and posting the progress.
Thanks again and keep it coming.
Dan.
avatar
dbeng

Posts : 2
Join date : 2015-06-14

View user profile

Back to top Go down

Re: Classic R #27 Build - Parking Brake

Post by comled on Sun Apr 24, 2016 12:55 pm

Thanks for the kind comments Dan. I hope what I post will be useful to someone else at some point. I looked at a lot of build threads last year when I was deciding whether or not to go ahead with this project and I found the most useful ones for me were those with a lot of detail and pictures.

What stage is your build at?

-Dave

_________________
2015 Stalker Classic R/L26 in progress
2015 Nissan 370Z
2010 Triumph Bonneville T100
1977 MGB
1973 Norton Commando MkII Interstate
1960 Hammond A100
1949 Ford 8N
avatar
comled

Posts : 124
Join date : 2015-10-07
Location : New Hope, PA

View user profile http://comley.us

Back to top Go down

Re: Classic R #27 Build - Parking Brake

Post by XL22 on Wed Apr 27, 2016 4:17 pm

That's terrific! Save those patterns for sure. I'm sure they'll come in handy for future builds.

XL22

Posts : 88
Join date : 2015-06-05

View user profile

Back to top Go down

Re: Classic R #27 Build - Parking Brake

Post by comled on Mon May 02, 2016 11:06 pm

My parking brake caliper brackets arrived on Friday and I fitted them over the weekend.


Here's a comparison of the 3D printed one and the final item. I modified one of the dimensions before getting the part machined to allow for proper clearance between the caliper bridge and the outside of the rotor. I also opened the holes out a little. The new brackets bolted right on and the calipers were a great fit.


I'm using the Lokar universal handbrake cable that has to be cut to size to fit the application. The cable housing end that fits into the caliper is threaded 7/16-14 and has a short section that's unthreaded followed by a slightly wider diameter section that's also unthreaded. I used a combination of a flat washer (machine bushing) and a spring washer that I picked up at the hardware store to accommodate the shoulder and unthreaded section. The 7/16 tap calls for a 23/64 drill: here I'm checking the fit of the cable end and washers into a test drilling in a scrap piece of aluminum before drilling the actual calipers.


The drilled and threaded cable housing bracket from the caliper. The cable housing end will thread directly into this. The bracket is slightly thicker than the threaded part of the cable housing end. This meant I couldn't install the locknut on the back of the bracket so I ditched the nyloc nut and used a spring washer in its place.

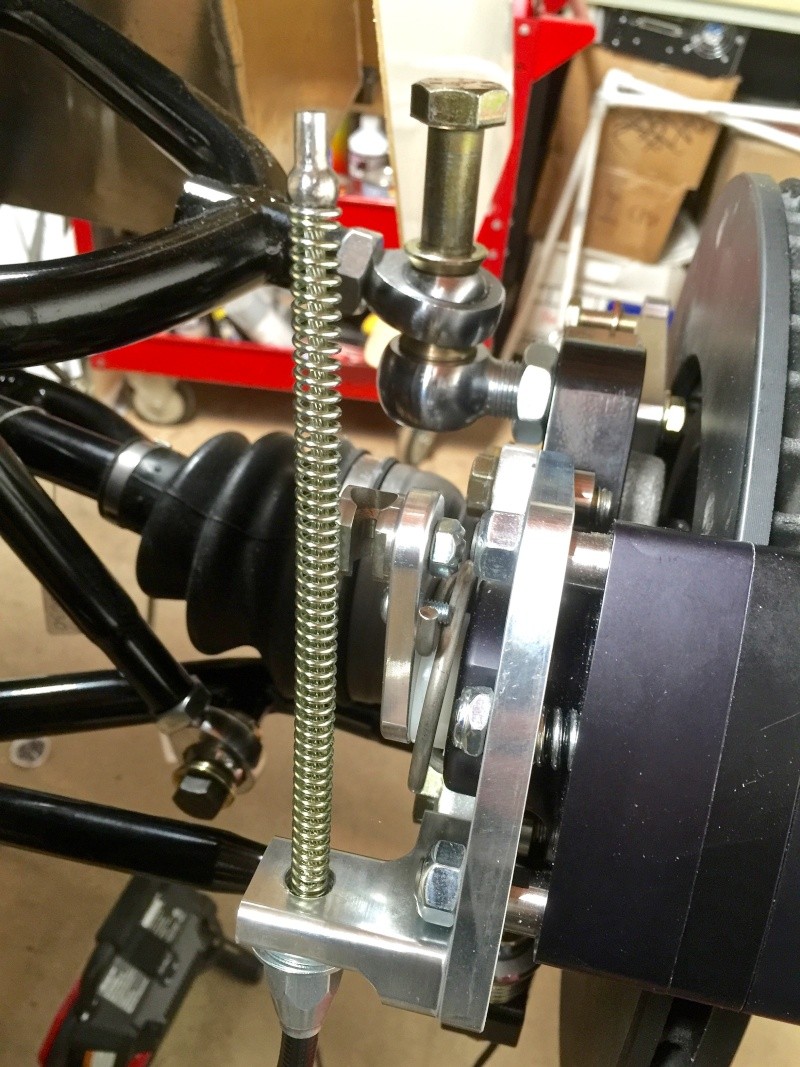

The assembled caliper and cable assembly mounted on the car. You can see that the spring is way too long. I trimmed it to fit using an air cutoff tool.
